To connect the Craftsman Marine engine with a Craftsman Marine engine panel, 2 cables are required. Cable type A is for power and cable type B is for signals. The cables are available in lengths of 2m, 4m, 6m and 10m. It is possible to connect different cable lengths together. To protect the electrical installation against moisture, salt, water, dust or dirt, all cables are fitted with waterproof connectors. Each engine is standard supplied with cable A and B, with lengths of 4 metre each (CM2 with 2 metre).

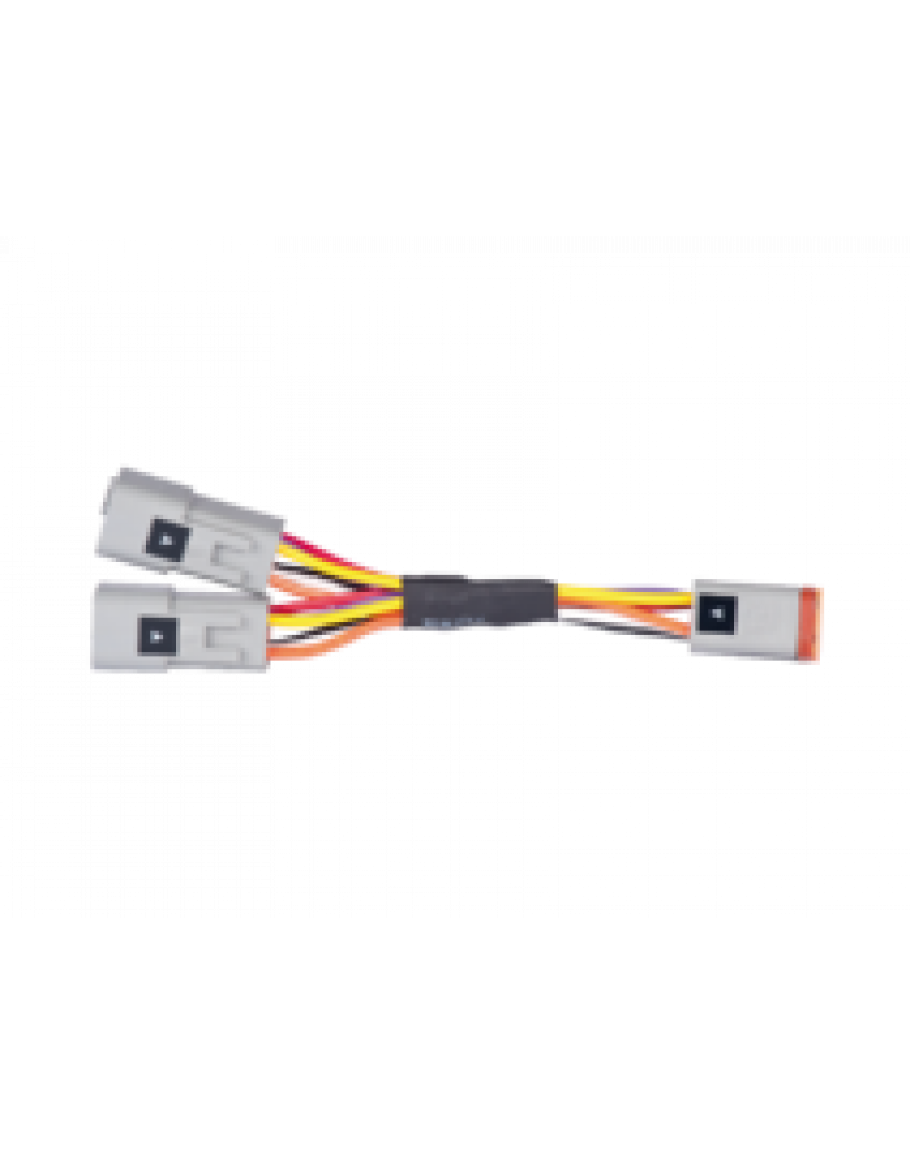

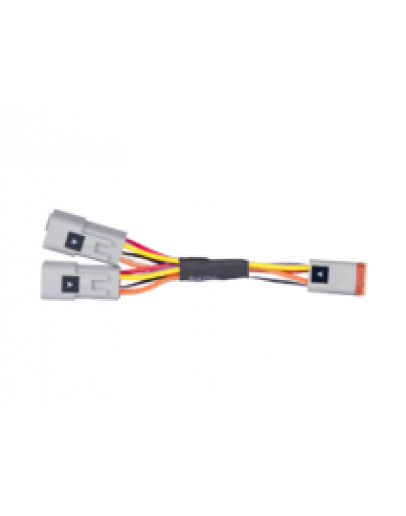

in order to connect two engine panels to an engine a splitter cables is required.
Cable type A is needed for all engine panel combinations. Depending on your engine panel combination you may also need splitter cable type B or the flybridge connection card.
Waterproof connectors IP67 rubber sealing.
Latch lever lock, to ensure a 100% tight connection, also in case of vibrations.
