Oil pressure gauge 12V 0-8bar black

35.00€
Ex Tax: 35.00€
Product Code: DB.010.20002
Stock Instock

Overview

Oil pressure indicator with a pressure indication from 0-10 bar and 0-145 psi. Due to the built-in damping a smooth pointer movement is achieved.Black gauge is supplied with black bezel and ...

Oil pressure indicator with a pressure indication from 0-10 bar and 0-145 psi.

Due to the built-in damping a smooth pointer movement is achieved.

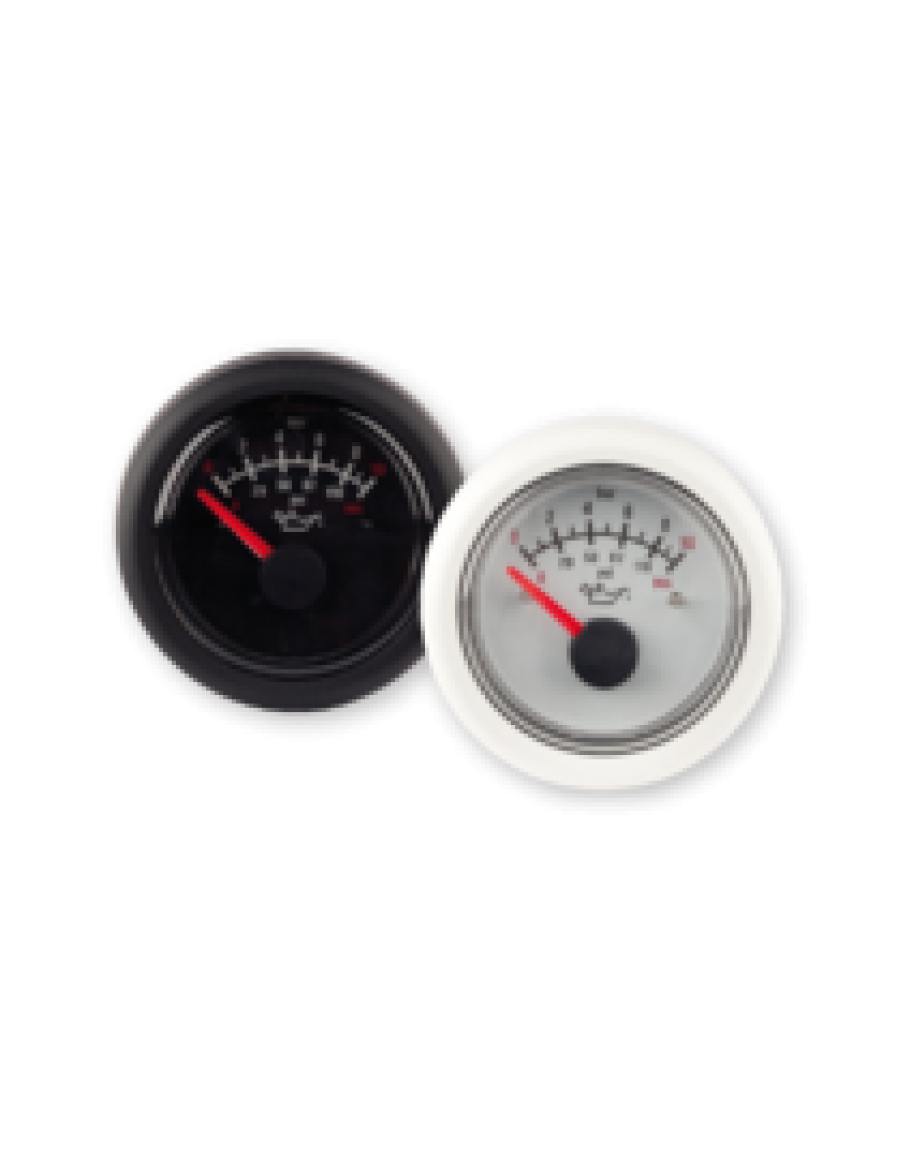

Black gauge is supplied with black bezel and white gauge is supplied with white bezel.
Optional chrome bezel is available seperately.

0-10 bar (0-145 psi)

Input Resistance Range0 Ω = 0 bar, 52 Ω = 2 bar, 88 Ω = 4 bar, 124 Ω = 6 bar, 180 Ω = 10 bar
Electronics
Diameter ø52 mm
Operating Voltage 12 VDC
