General features:
Protection cover for electrical components.
Easy accessible battery connection terminals.
Waterproof and latch lock connector for the control panel. A 100% guaranteed connection also in case of vibrations.
Motor temperature protection switch.
5A circuit breaker for the control panel.
Brass tail piece.
Replaceable zinc or aluminium anode.
Flexible coupling to absorb vibrations.
Supplied with 1mm and 2mm gasket to center the propeller inside the tunnel.
FAN for extra cooling.
Ánodo de zinc o aluminio reemplazable.
Acoplamiento flexible para absorber vibraciones.
Se suministra con una junta de 1 mm y 2 mm para centrar la hélice en el interior del túnel.
FAN para enfriamiento extra.

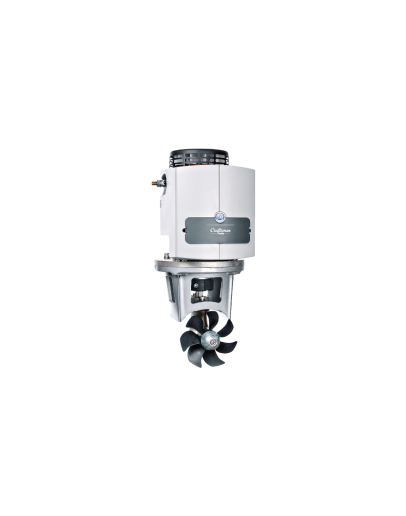

| Electric Bow Thrusters |
| Thrust Force |
35 kgf |
| Tunnel Diameter |
110 mm |
| Power |
2,4 kW (3,3 hp) |
| Motor Type |
12 VDC |
| Motor Temperature Switch |
Yes |
| Operating Time |
2 min/h |
| Current Consumption |
340 A |
| Min. Battery Capacity |
105 Ah |
| Main Fuse (ANL, Slow Blow) |
250 A |
| Battery Cable |
0 - 9 m / 50 mm², 9 - 13 m / 70 mm² |
| Terminals |
M8 |
| Weight |
12 kg |
